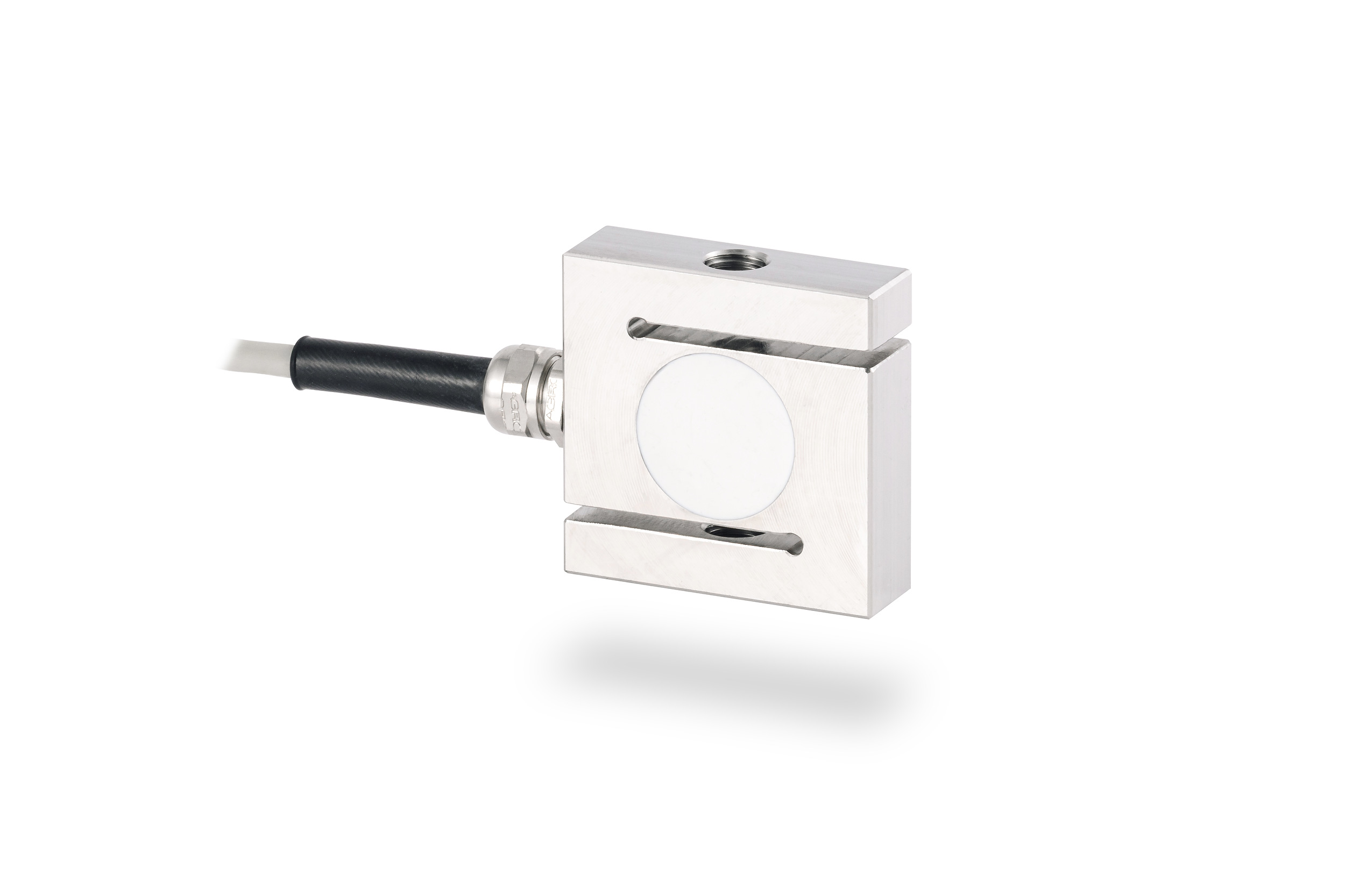

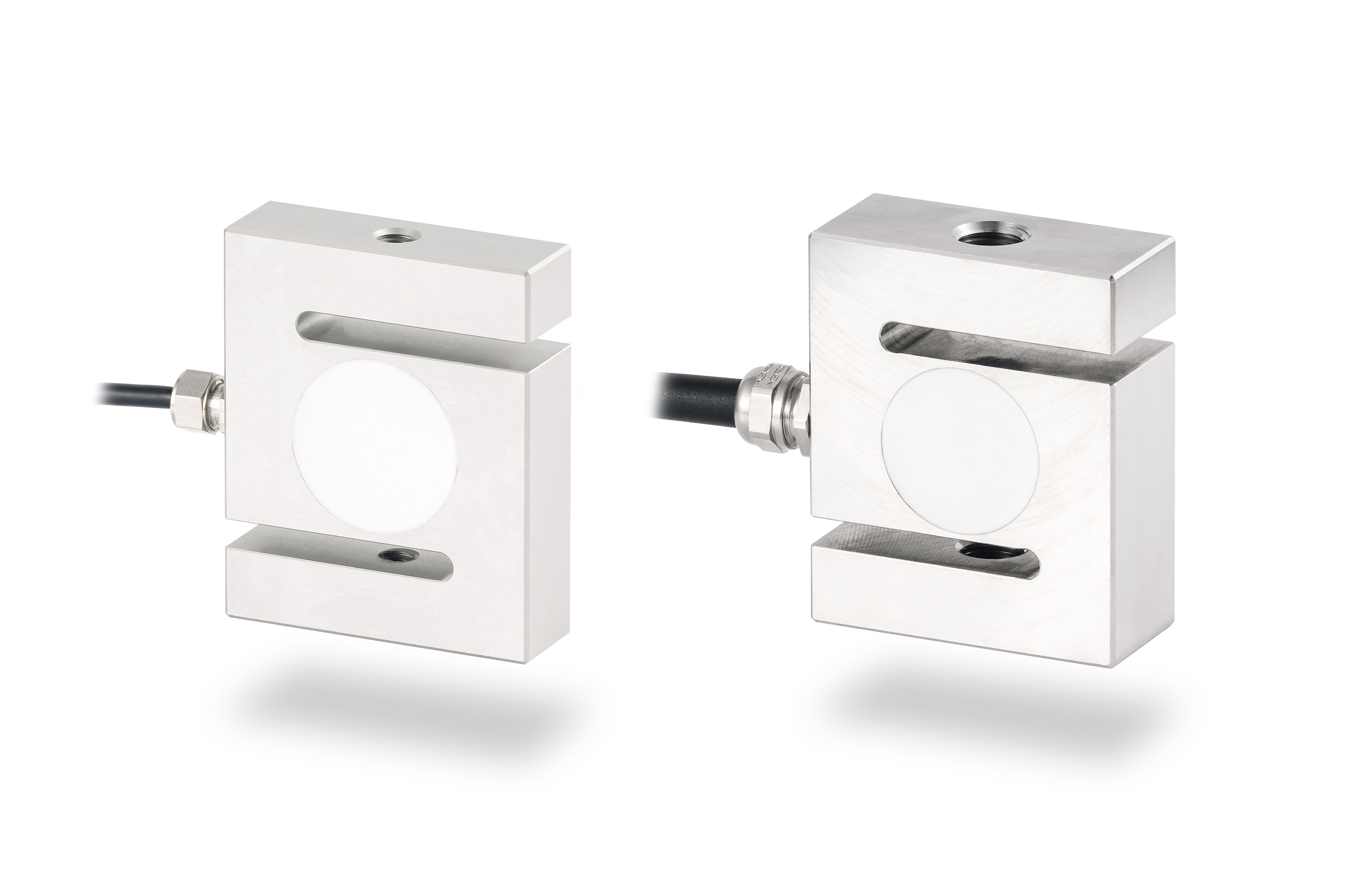

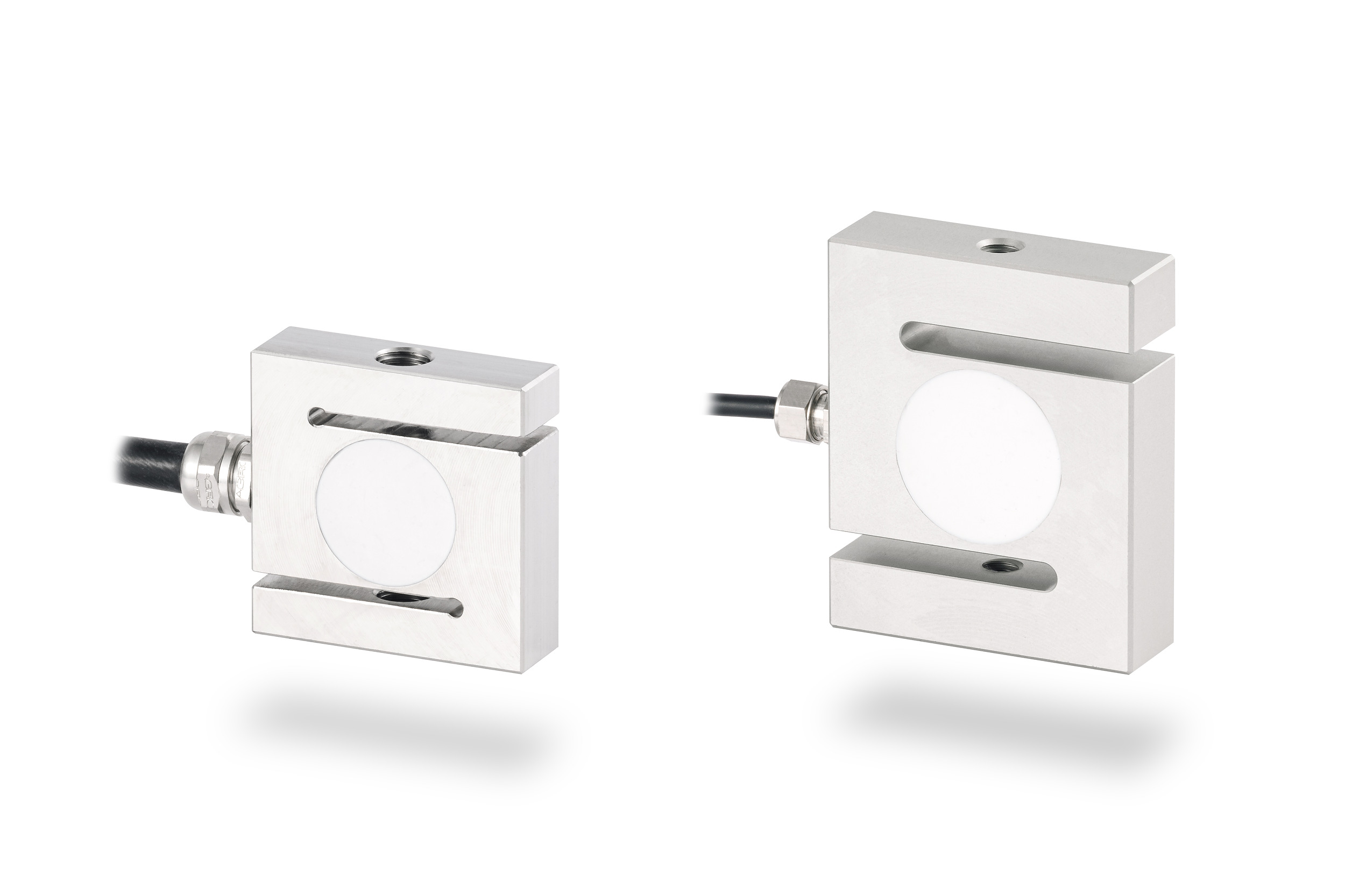

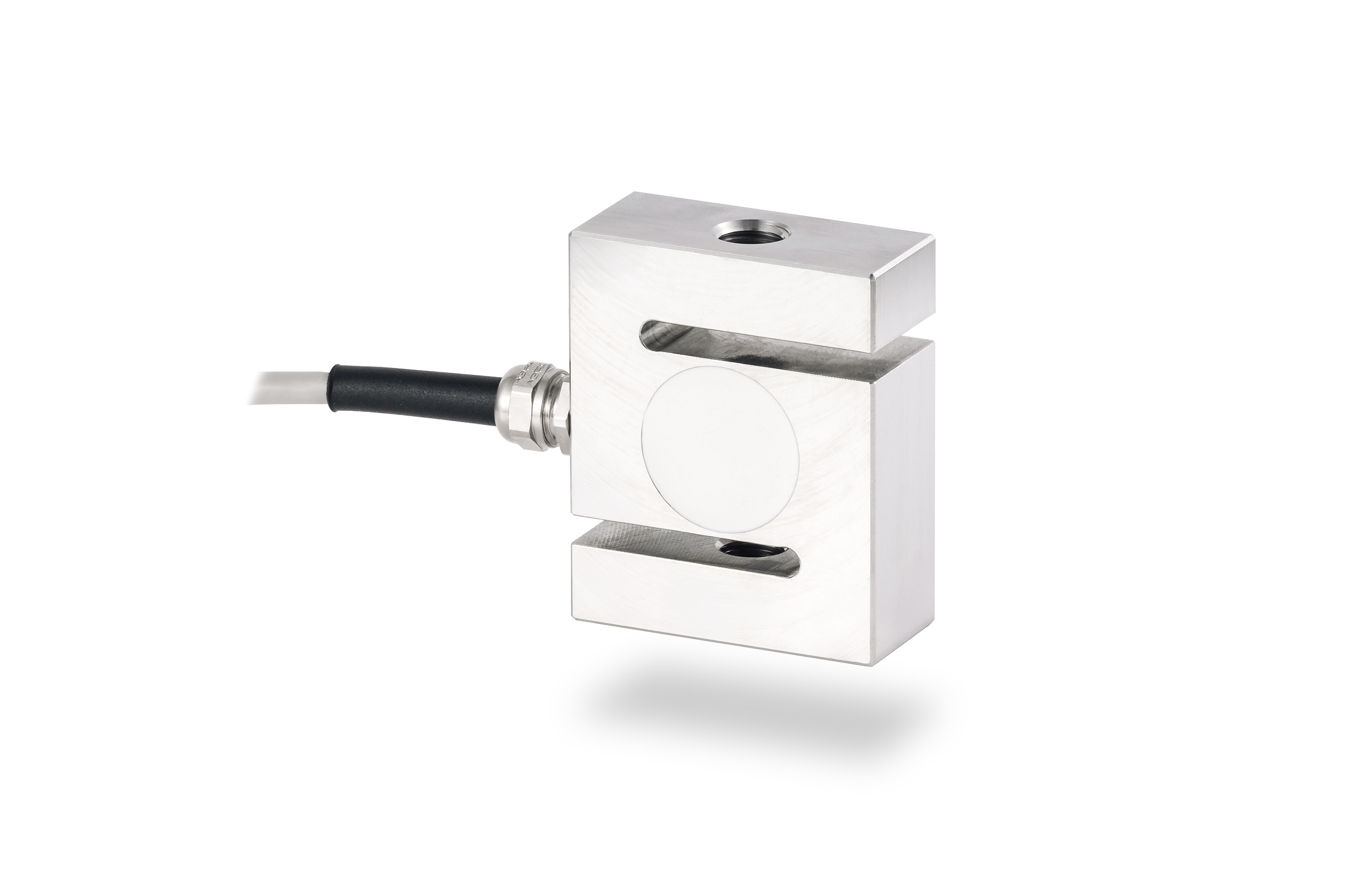

EMS110
Precision sensor type 'S'. Measures in both compression and tension directions.
Loading...
Setting up the configurator
Updating the configurator
Out of Stock. Let us know you're interested, and we'll prioritize its production.
This product is only available on request.
In Stock
| Price |
inc. VAT
|
Loading...
Adding to cart
| Force Range (Fn) | 200; 500 N | 1; 2; 5; 10 kN |
|---|---|---|
| Overload | ||
| - Safe | 150 % F.S. | |
| - Ultimate | 250 % F.S. | |
| - Permanent Static Load | 75 % F.S. | |
| - Dynamic Load | 50 % F.S. | |
| Nominal Sensitivity | 2 ± 0.04 mV/V | |
| Zero Balance | ± 0.04 mV/V | |
| Max. Error | ||
| - Non-linearity | 0.1 % F.S | |
| - Hysteresis | 0.1 % F.S | |
| - Creep (30 min) | 0.05 % F.S | |
| Temperature Effect | ||
| - Zero | 0.05 % F.S./10°C | |
| - Output | 0.05 % F.S./10°C | |
| Bridge Resistance | ||
| - Input | 390 ± 20 Ω | 375 ± 20 Ω |
| - Output | 350 ± 20 Ω | |
| Insulation Impedance | > 500 MΩ | |
| Excitation | ||
| - Recommended | 5 ... 10 V | |
| - Maximal | 15 V | |
| Temperature range | ||
| - Nominal | 0 ... 50 °C | |
| - Operating | -10 ... 70 °C | |
| Protection | IP54 | |
| Cable | ||
| - Type | LifYDY 4 x 0.05 | LifYDY 4 x 0.14 |
| - Length | 2 m | |
| Body Material | Aluminium | Stainless steel |
