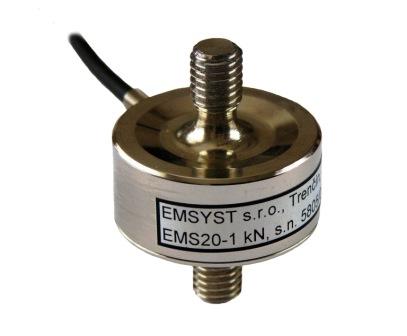

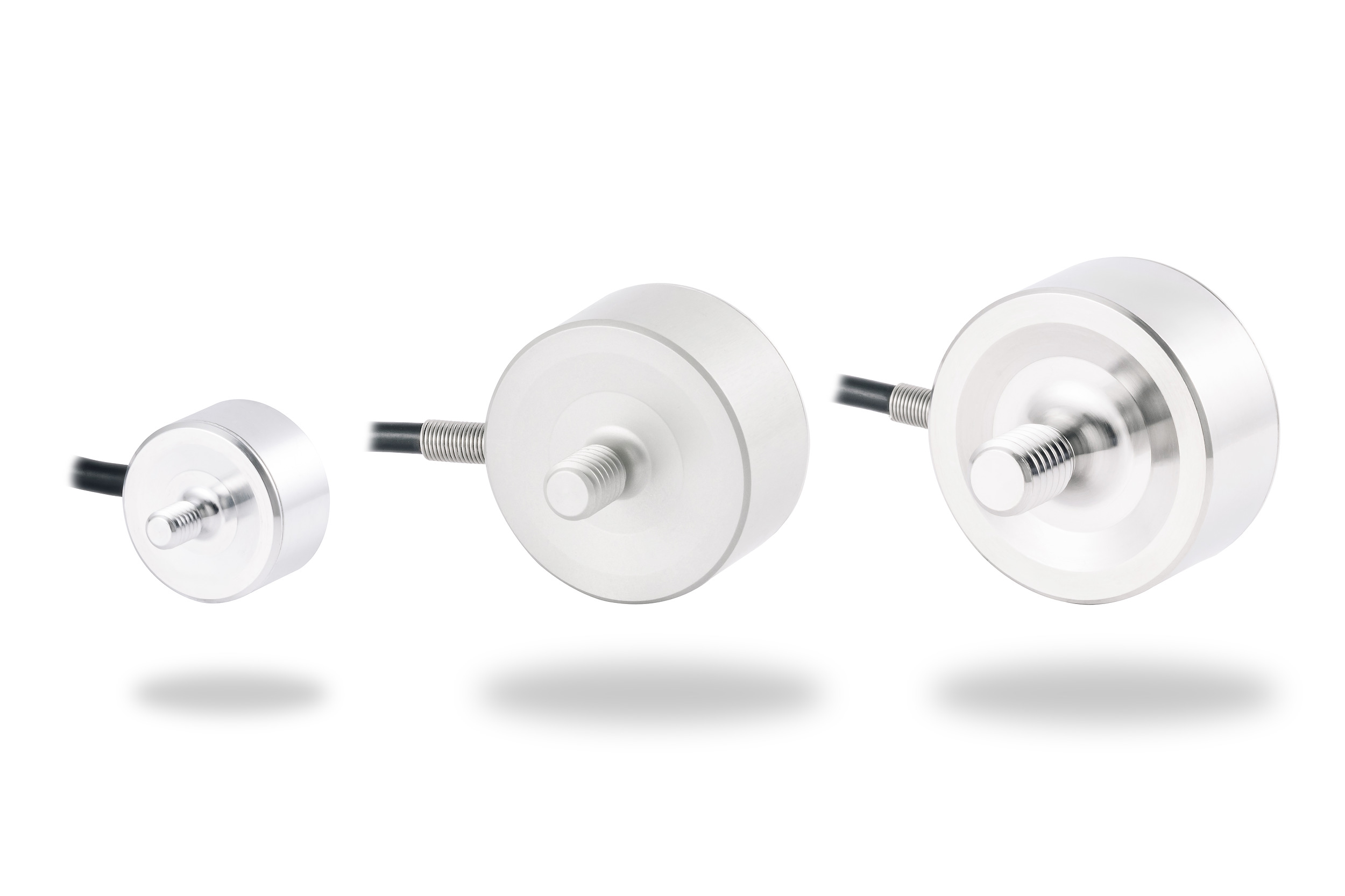

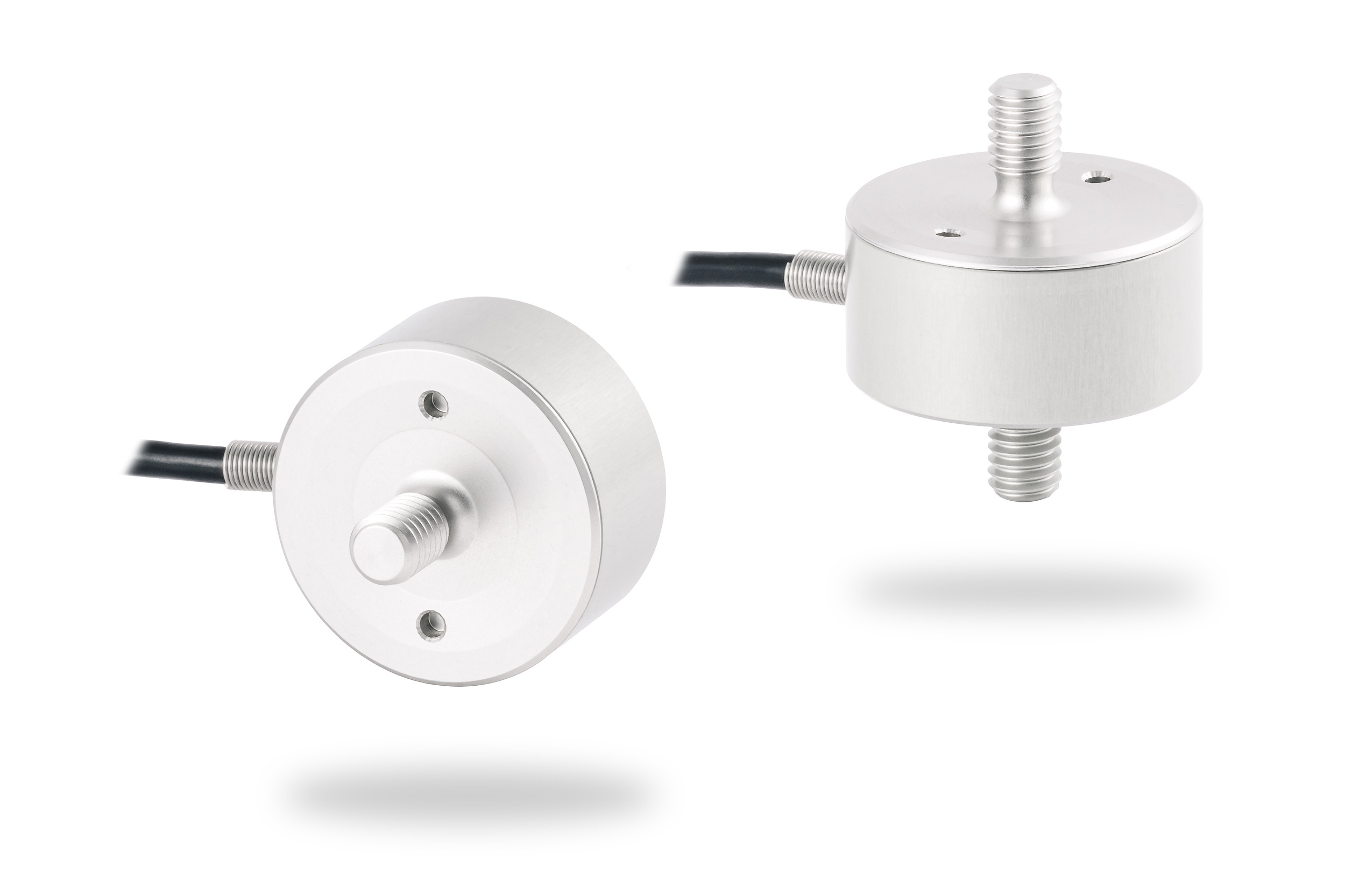

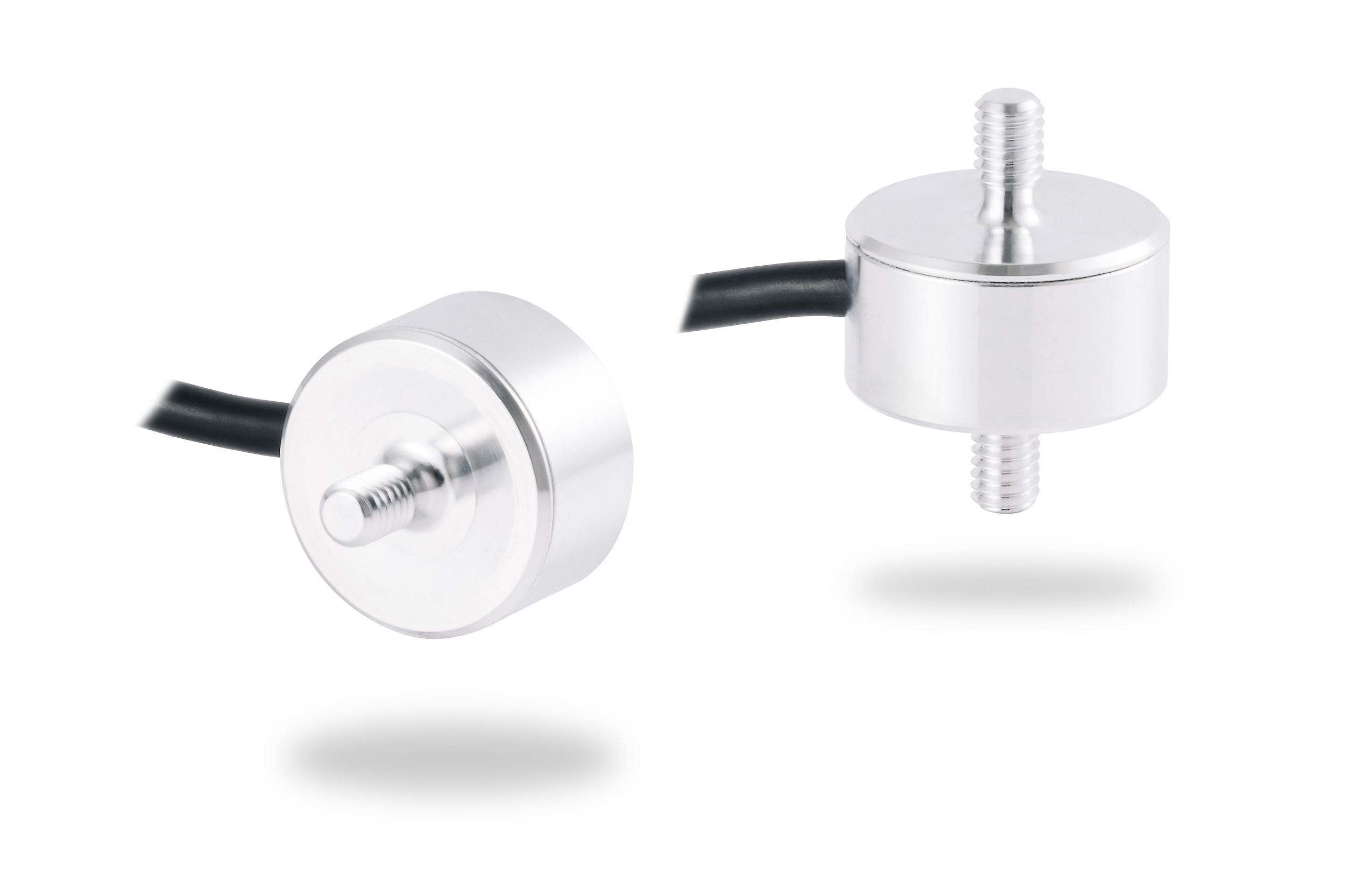

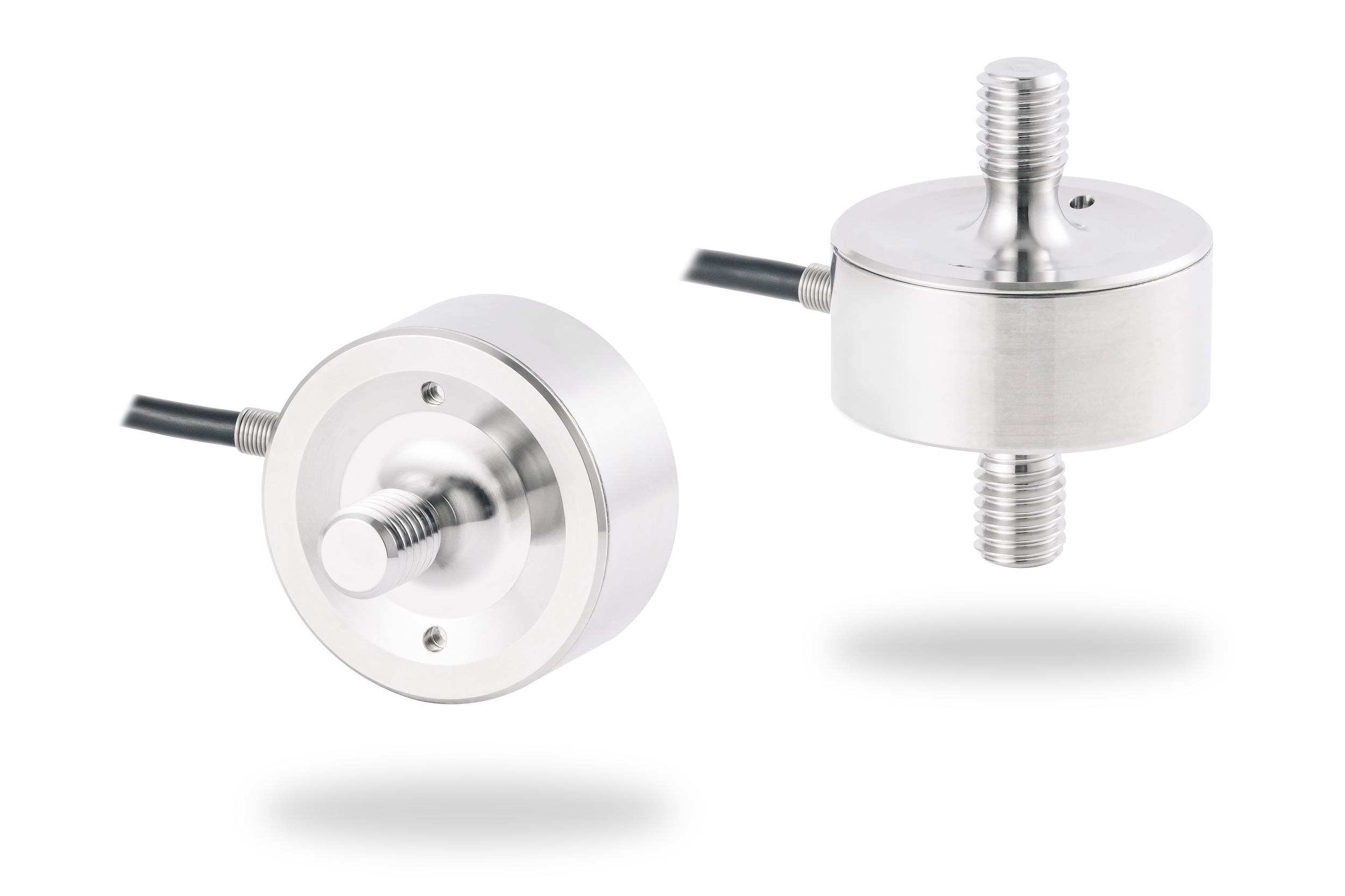

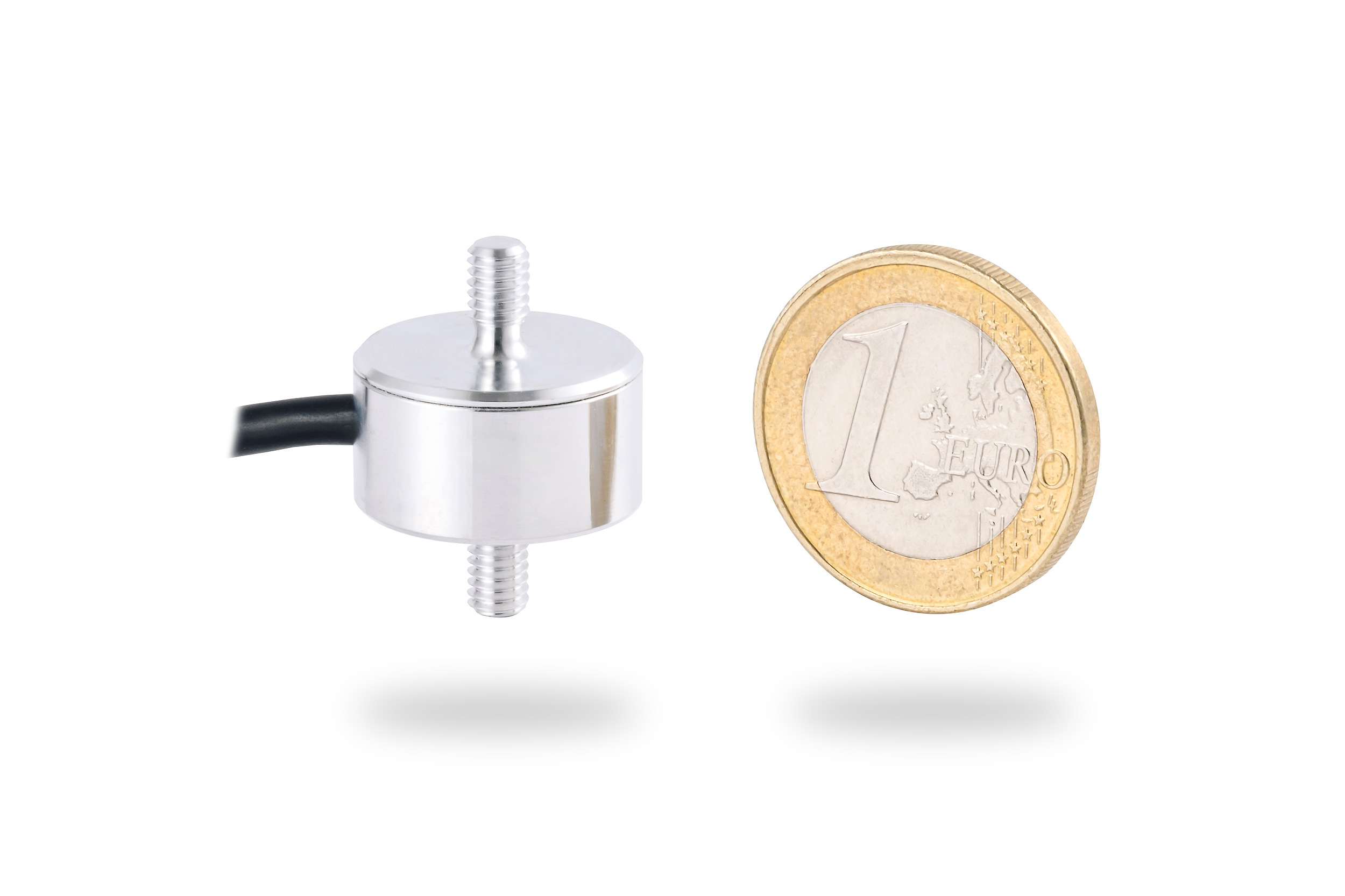

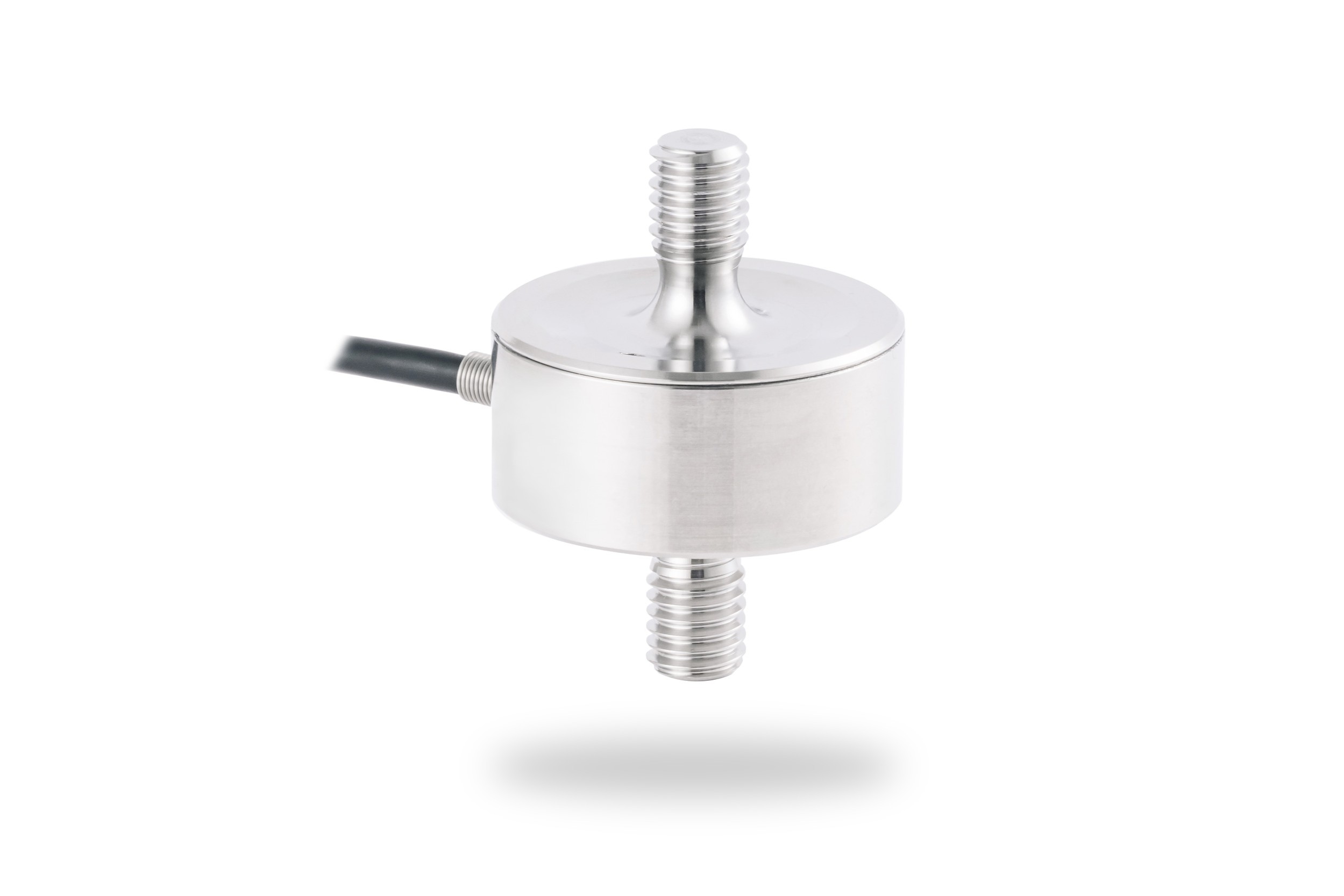

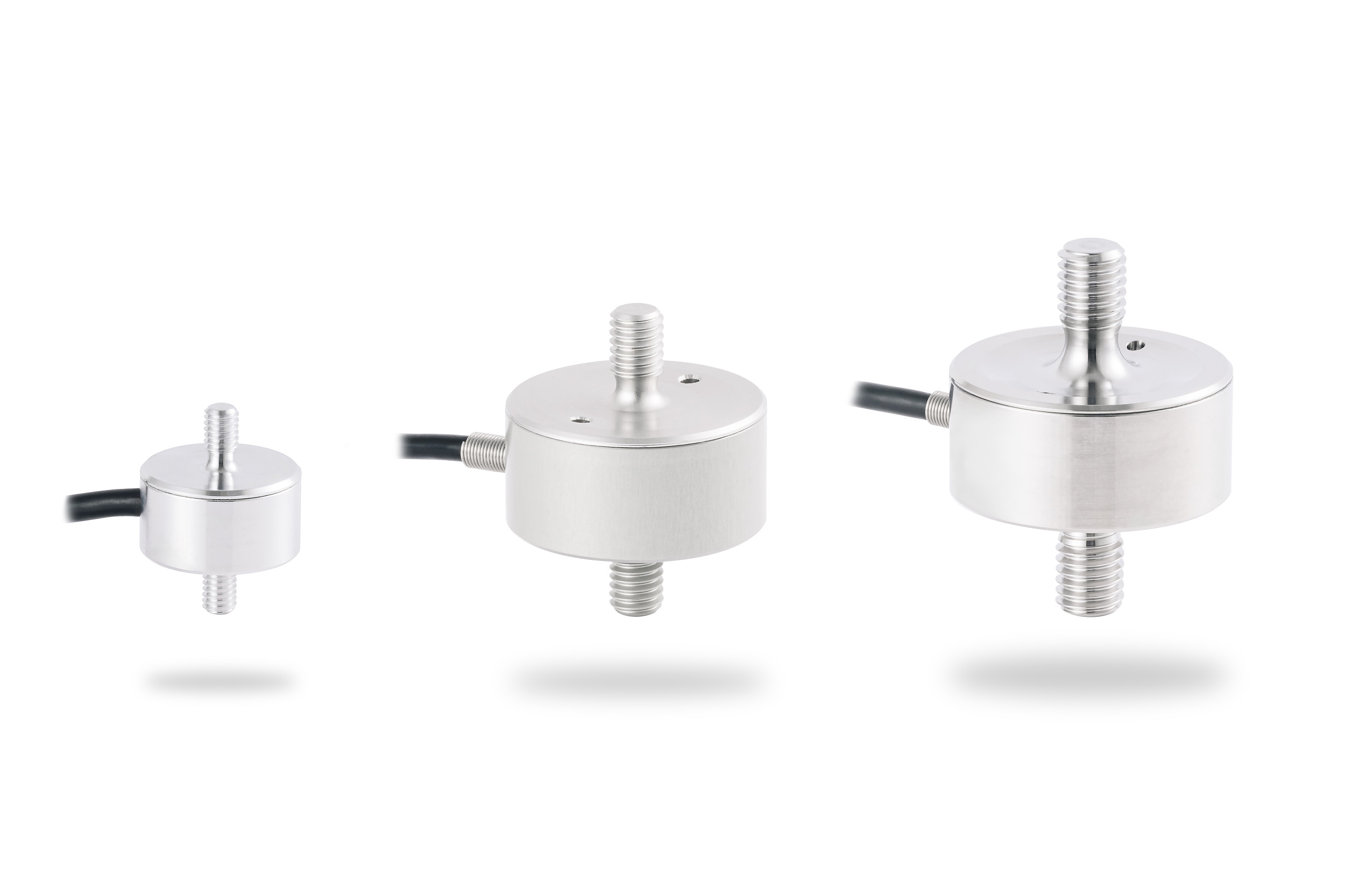

EMS20

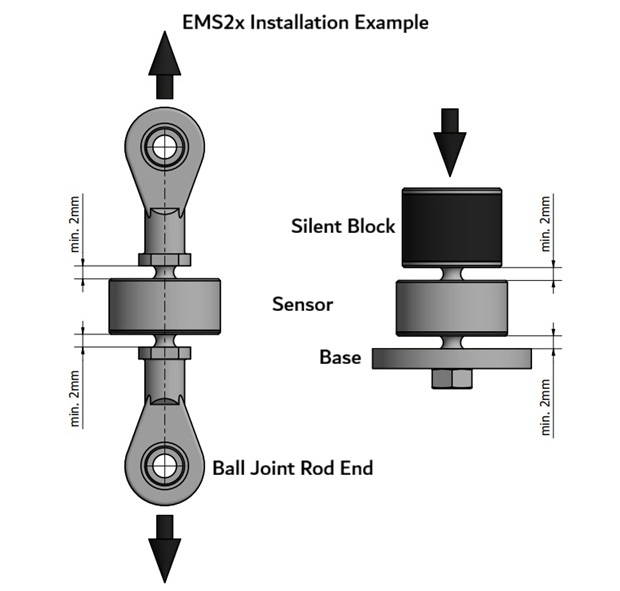

A universal membrane sensor for general use. It measures tensile or compressive forces acting in the direction of the sensor's axis and is mounted using external threads. Applications include testing and measuring forces on machines, dynamometers and electronic scales.
Select the product's properties to calculate the price and check its availability.
Force Range
Calibration Certificate Issued by
Out of Stock. Let us know you're interested, and we'll prioritize its production.
This product is only available on request.
In Stock
| Price |
inc. VAT
|
| Force Range (Fn) | 50 N | 100; 200; 500 N | 1; 2; 5 kN |
| Overload | |||
| - Safe | 130 % Fn | ||
| - Ultimate | 150 % Fn | ||
| - Permanent Static Load | 75 % Fn | ||
| - Dynamic Load | 50 % Fn | ||
| Nominal Sensitivity (Cn) | 1.0 ± 2 % mV/V | 1.5 ± 2 % mV/V | |
| Zero Balance | 2 % Fn | ||
| Max. Error | |||
| - Non-linearity | 0.5 % Fn | 0.25 % Fn | |
| - Hysteresis | 0.5 % Fn | 0.25 % Fn | |
| - Creep (30 min) | 0.2 % Fn | 0.1 % Fn | |
| Temperature Effect | |||
| - Zero | 0.1 % Fn/10 °C | ||
| - Output | 0.1 % Fn/10 °C | ||
| Bridge Resistance | |||
| - Input | 395 ± 10 % Ω | 380 ± 10 % Ω | |
| - Output | 350 ± 5 % Ω | 350 ± 10 % Ω | |
| Isolation Impedance | > 500 MΩ | ||
| Excitation | |||
| - Recomended | 5 ... 7 V | 7 ... 10 V | |
| - Maximal | 10 V | 15 V | |
| Temperature Range | |||
| - Nominal (Compensated) | 0 ... 50 °C | ||
| - Operating | -10 ... 70 °C | ||
| Protection | IP54 | ||
| Cable | |||
| - Type | LifYDY 4 x 0.05 | ||
| - Length | 2 m | ||
| Material | Aluminium | Stainless Steel | |
