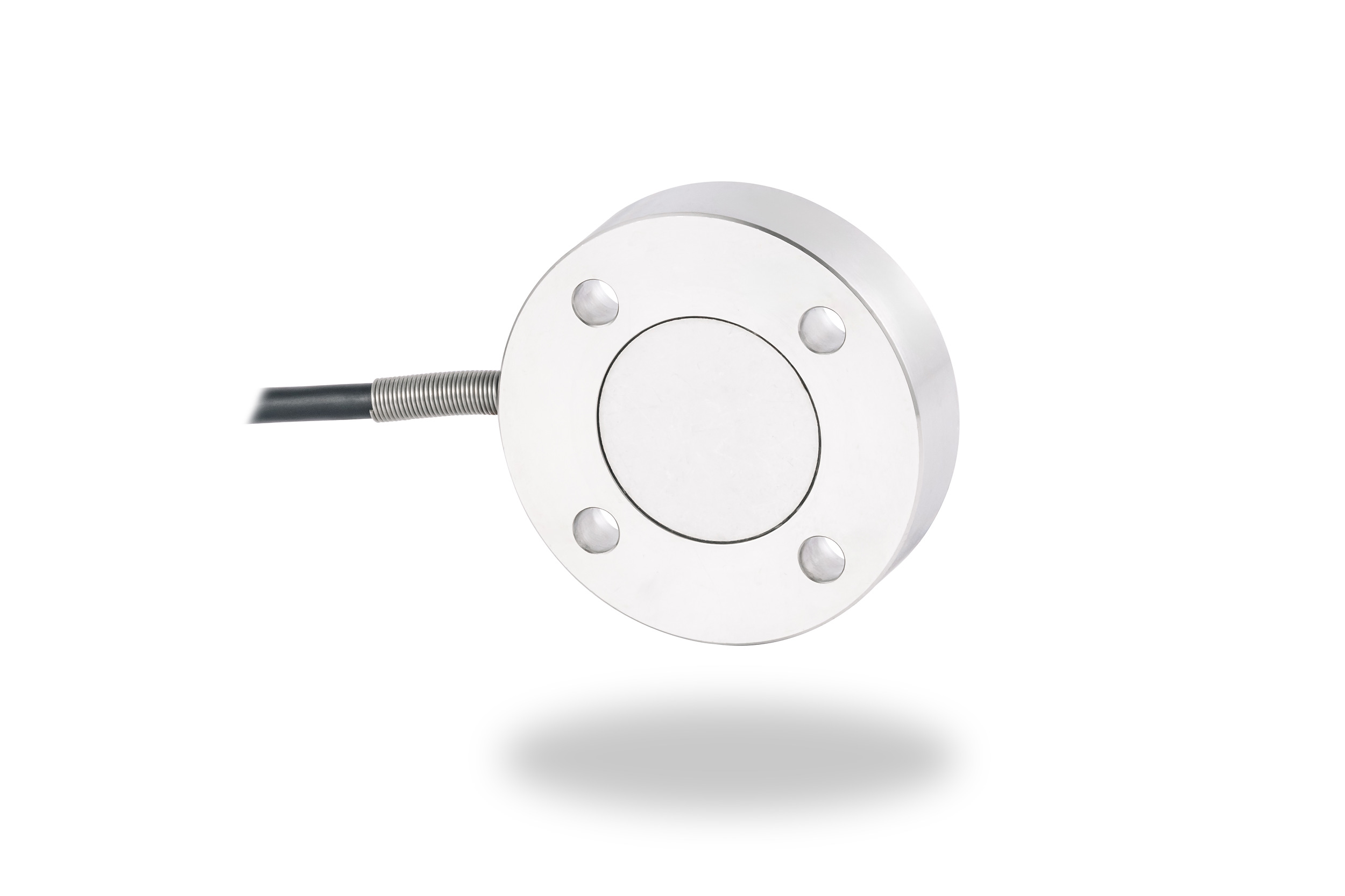

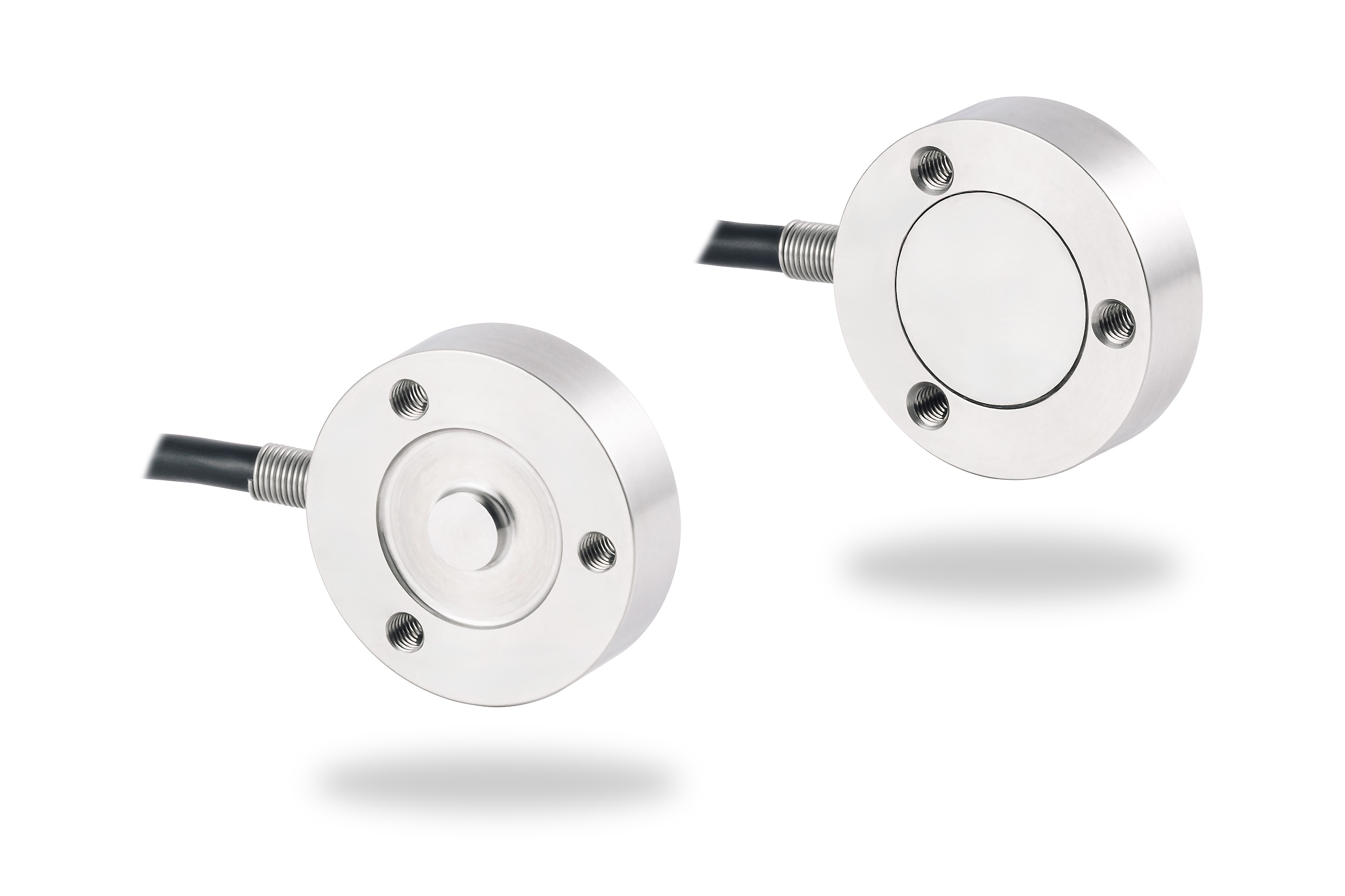

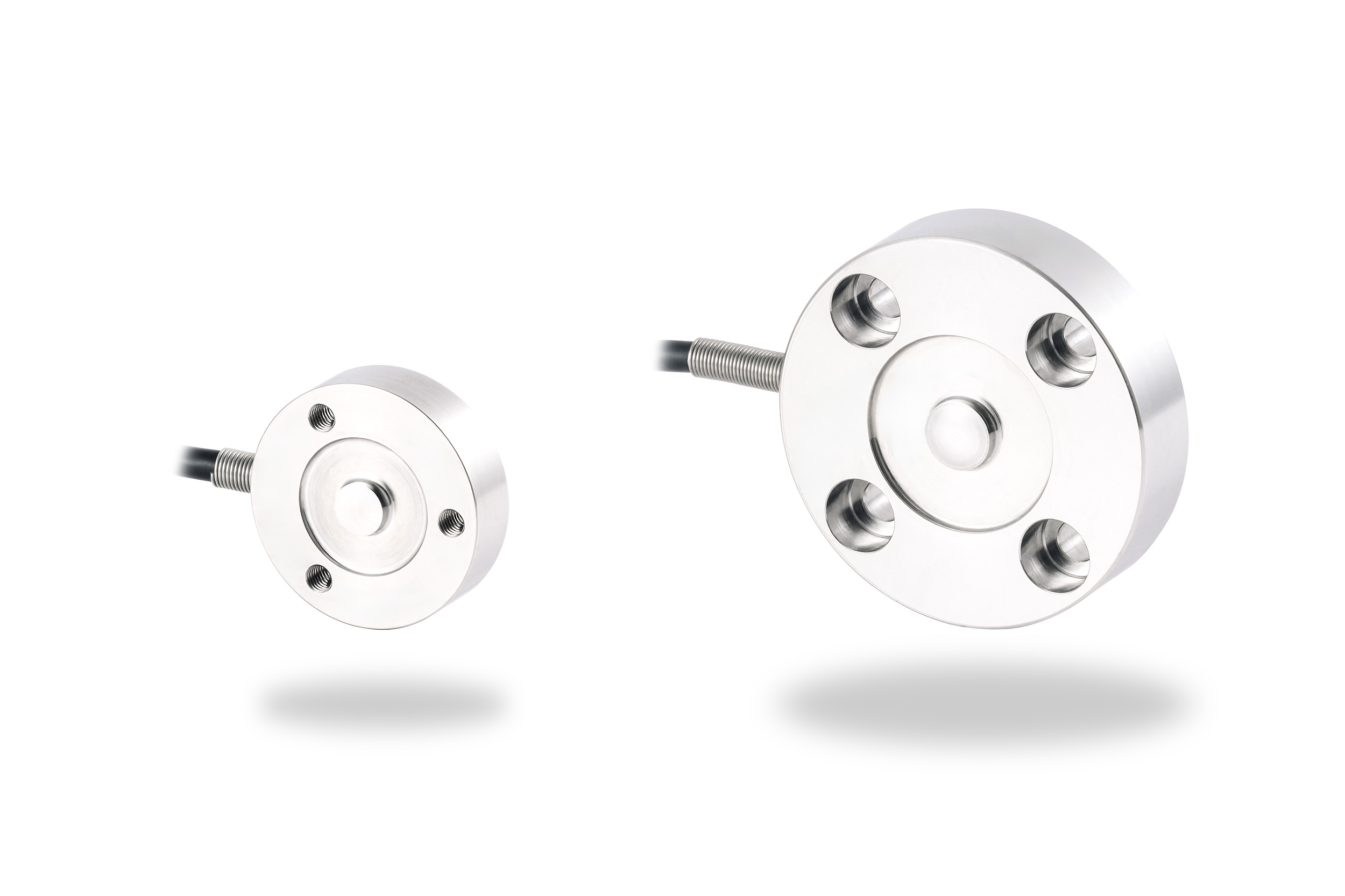

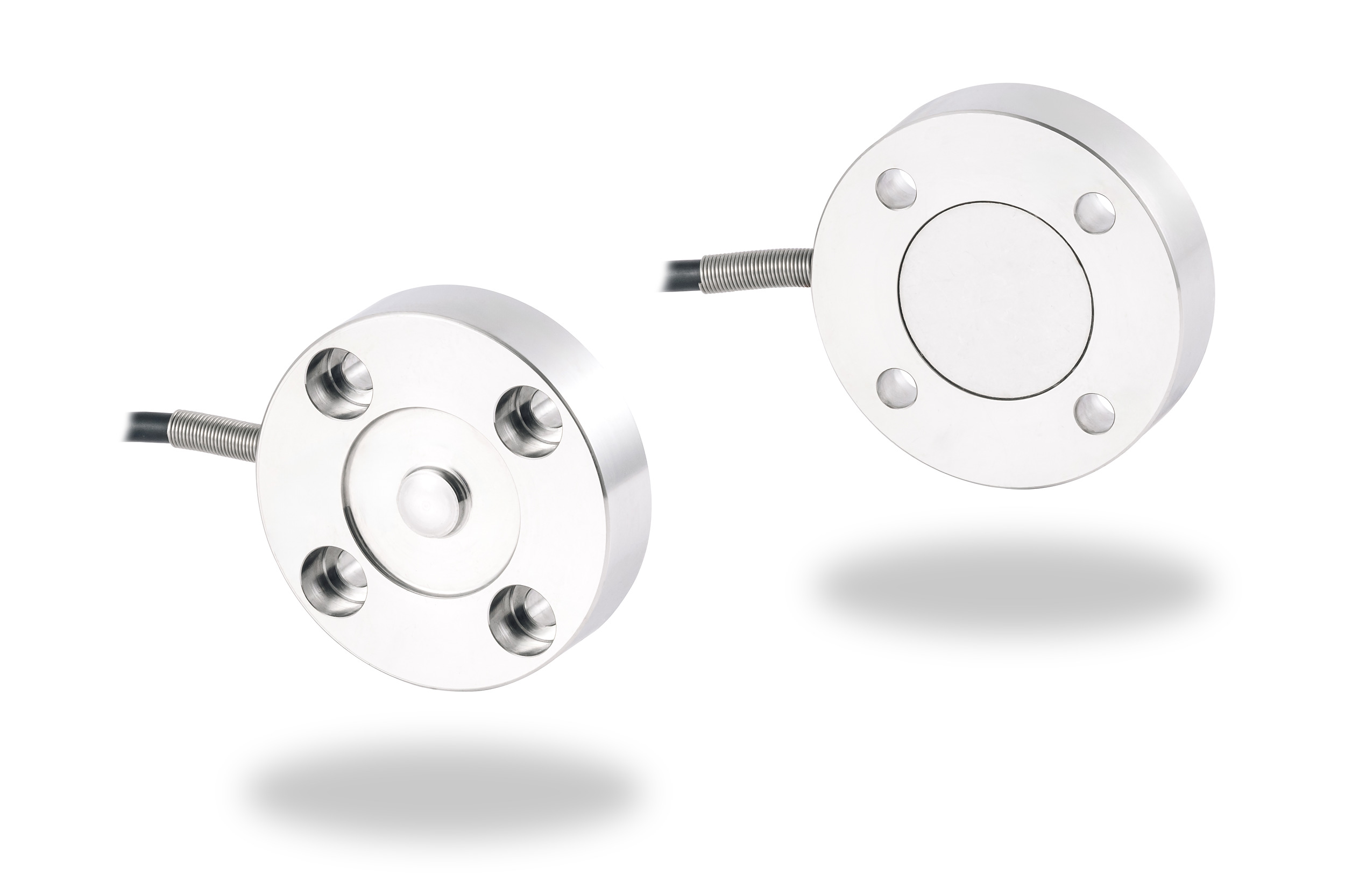

EMS60
Universal membrane sensor for measuring pressure forces.
Select the product's properties to calculate the price and check its availability.
Force Range
Calibration Certificate Issued by
Out of Stock. Let us know you're interested, and we'll prioritize its production.
This product is only available on request.
In Stock
| Price |
inc. VAT
|
| Force Range (Fn) | 1; 2; 5 kN |
|---|---|
| Overload | |
| - Safe | 150 % Fn |
| - Ultimate | 200 % Fn |
| Nominal Sensitivity | 1.5 ± 2 % mV/V |
| Zero Balance | 2 % F.S. |
| Non-linearity | 0.25 % F.S. |
| Hysteresis | 0.25 % F.S. |
| Creep (30 min) | 0.1 % F.S. |
| Temperature Effect | |
| - Zero | 0.1 % F.S./10°C |
| - Output | 0.1 % F.S./10°C |
| Bridge Resistance | |
| - Input | 380 ± 10 % Ω |
| - Output | 350 ± 5 % Ω |
| Insulation Impedance | > 500 MΩ |
| Excitation | |
| - Recommended | 7 V |
| - Maximal | 15 V |
| Temperature Range | |
| - Nominal (Compensated) | 0 ... 50 °C |
| - Operating | -10 ... 70 °C |
| Protection | IP54 |
| Cable | |
| - Type | LifYDY 4 x 0.05 |
| - Length | 2 m |
| Material Used | |
| - Body | Stainless Steel |
| - Surface Treatment | Nickel |
