EMS70

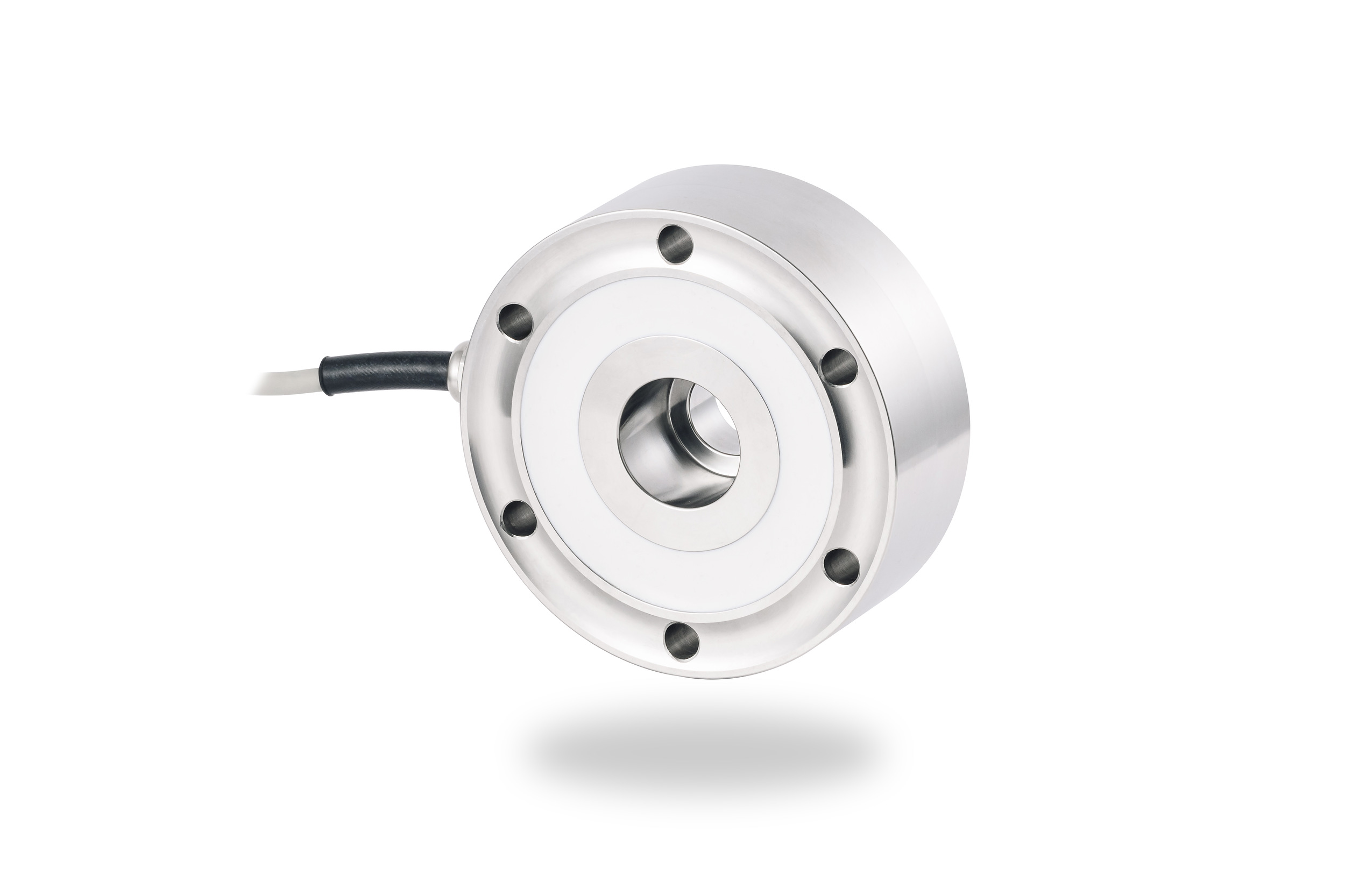

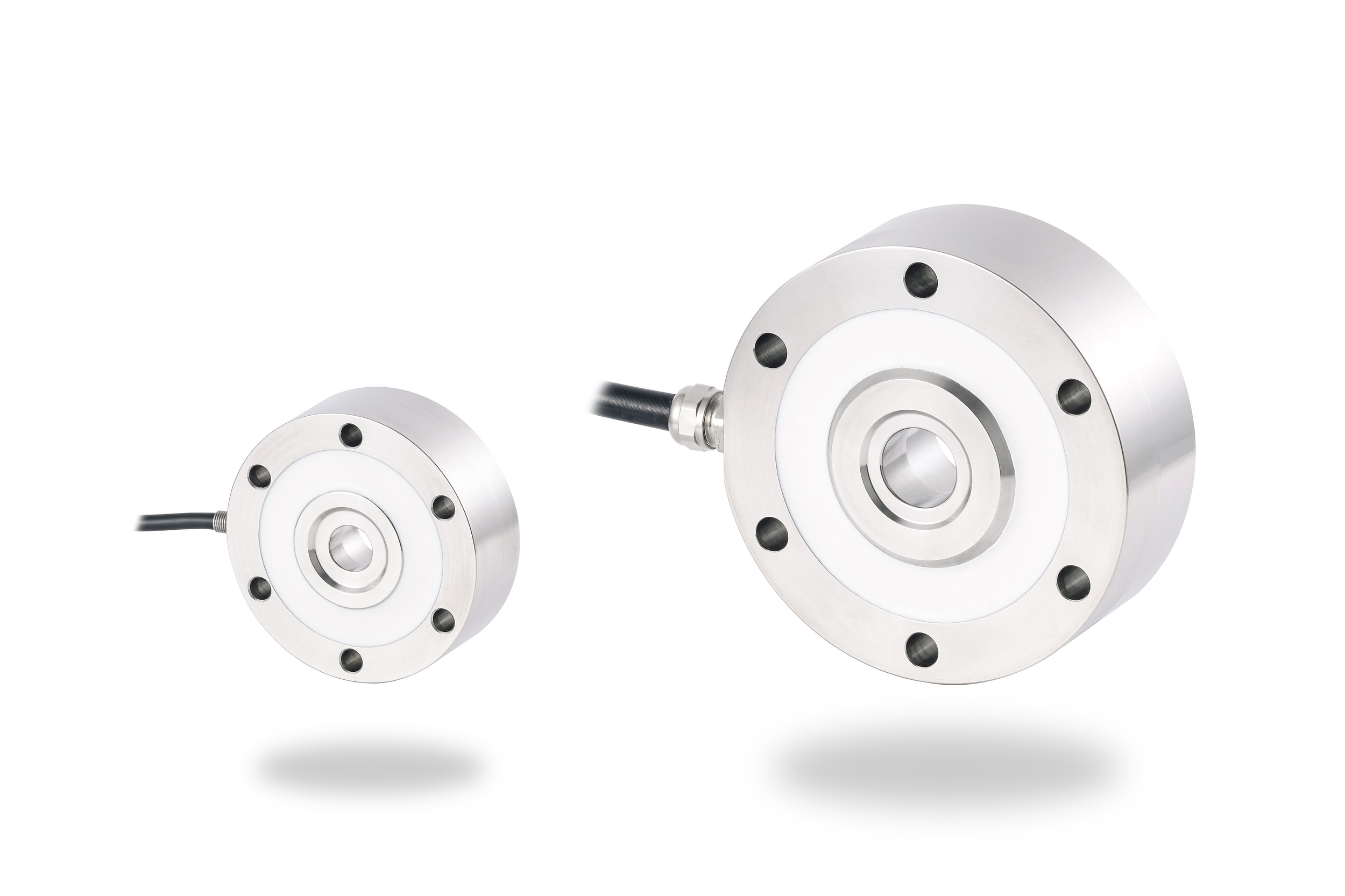

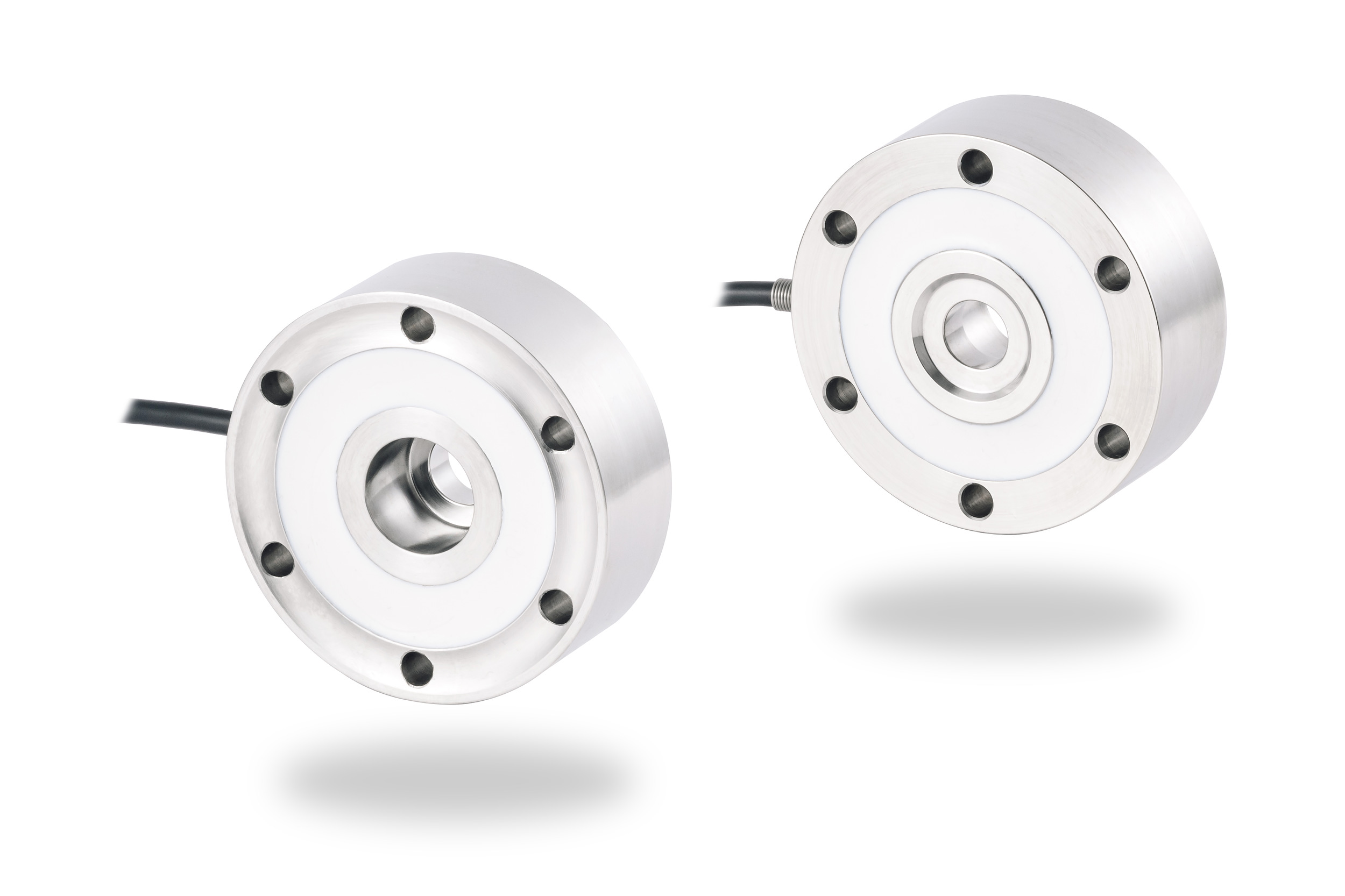

This precision ring sensor is designed mainly for use in the testing industry. It contains several strain gauge bridges to achieve high lateral force suppression. Versions with internal threads in the centre or circumferential holes are also available. Please email us to enquire about their availability.
Loading...
Setting up the configurator
Updating the configurator
Out of Stock. Let us know you're interested, and we'll prioritize its production.
This product is only available on request.
In Stock
| Price |
inc. VAT
|
Loading...
Adding to cart
| Force range | 1; 2; 5 kN | 10; 20; 50 kN | 100; 200; 500 kN |
|---|---|---|---|
| Overload | |||
| - Safe | 130 % Fn | ||
| - Ultimate | 150 % Fn | ||
| - Permanent Static Load | 75 % Fn | ||
| - Dynamic Load | 50 % Fn | ||
| Nominal Sensitivity | 1.5 ± 2 % mV/V | ||
| Zero balance | 2 % F.S. | ||
| Non-linearity | 0.2 % F.S. | 0.4 % F.S. | 0.6 % F.S. |
| Hysteresis | 0.2 % F.S. | 0.4 % F.S. | 0.4 % F.S. |
| Creep (30 min) | 0.1 % F.S. | ||
| Temperature Effect | |||
| - Zero | 0.05 % F.S./10°C | ||
| - Output | 0.05 % F.S./10°C | ||
| Bridge Resistance | |||
| - Input | 725 ± 20 Ω | 1075 ± 20 Ω | |
| - Output | 700 ± 10 Ω | 1050 ± 3 Ω | |
| Insulation Impedance | > 500 MΩ | ||
| Excitation | |||
| - Recomended | 7 ... 10 V | ||
| - Maximal | 15 V | ||
| Temperature Range | |||
| - Nominal (Compensated) | 0 ... 50 °C | ||
| - Operating | -10 ... 70 °C | ||
| Protection | IP54 | ||
| Cable | |||
| - Type | LifYDY 4x0.05 | LiYCY 4x0.14 | |
| - Length | 2 m | ||
| Material Used | |||
| - Body | Steel | ||
| - Surface Treatment | Nickel | ||
