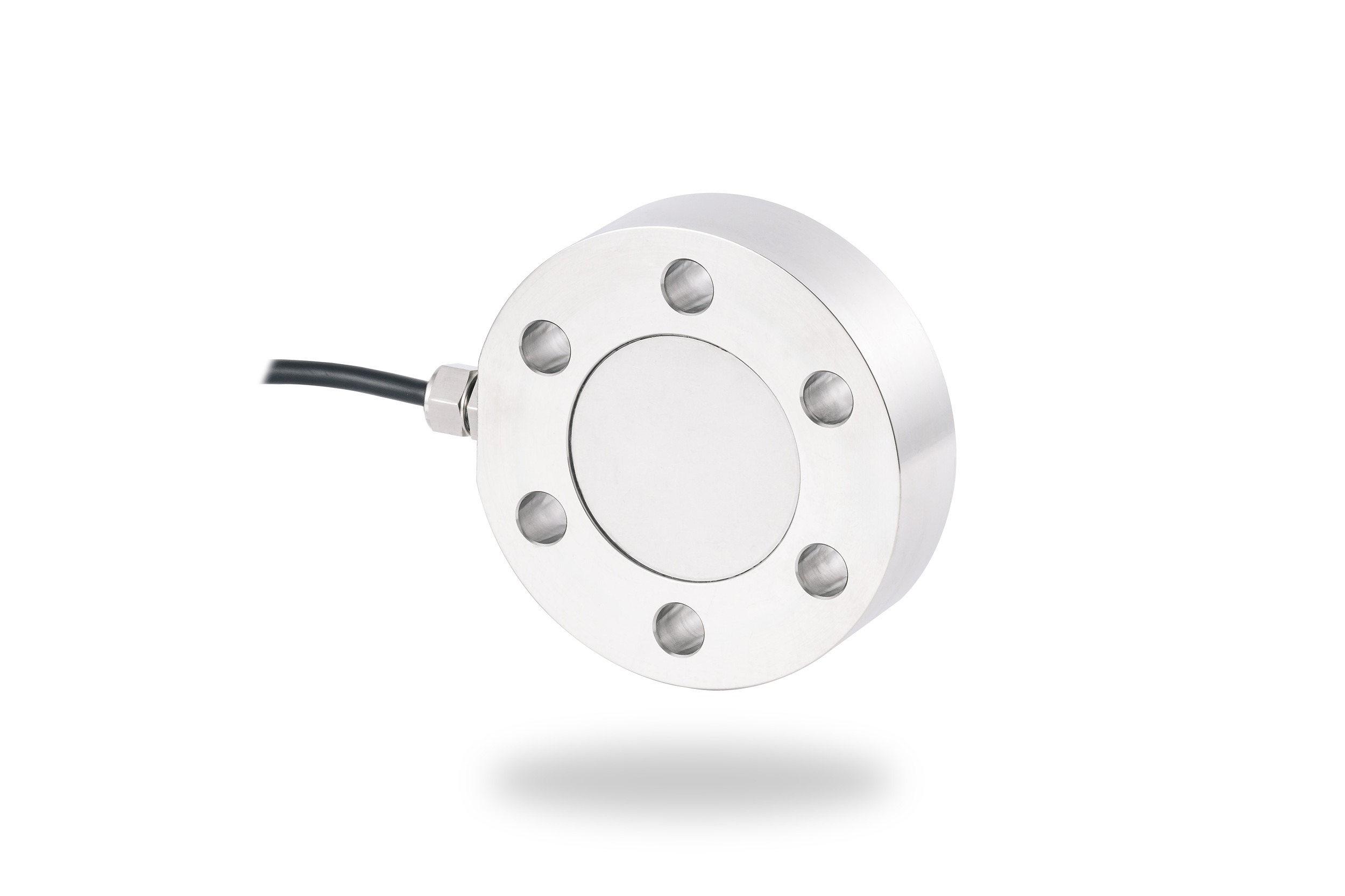

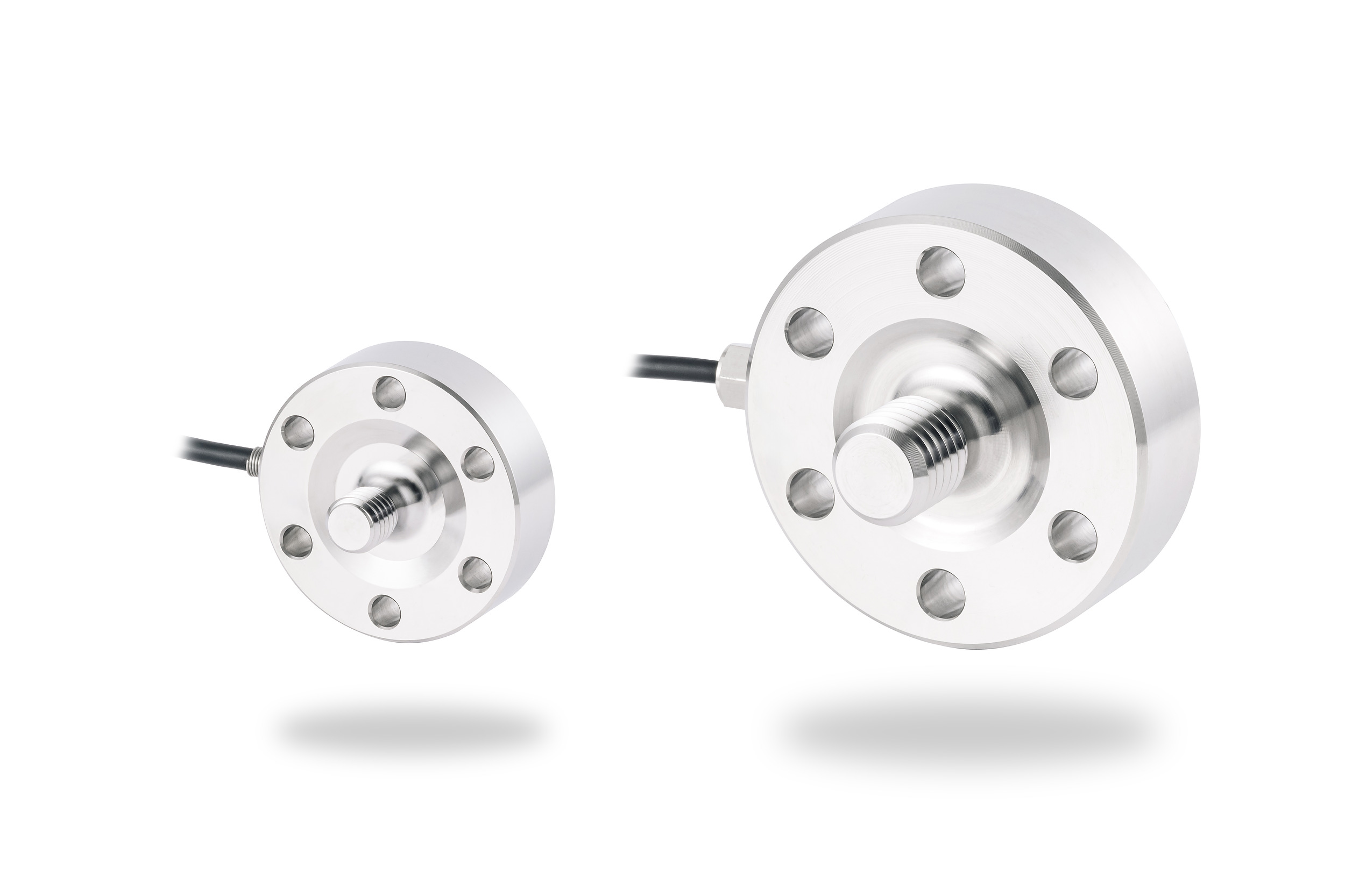

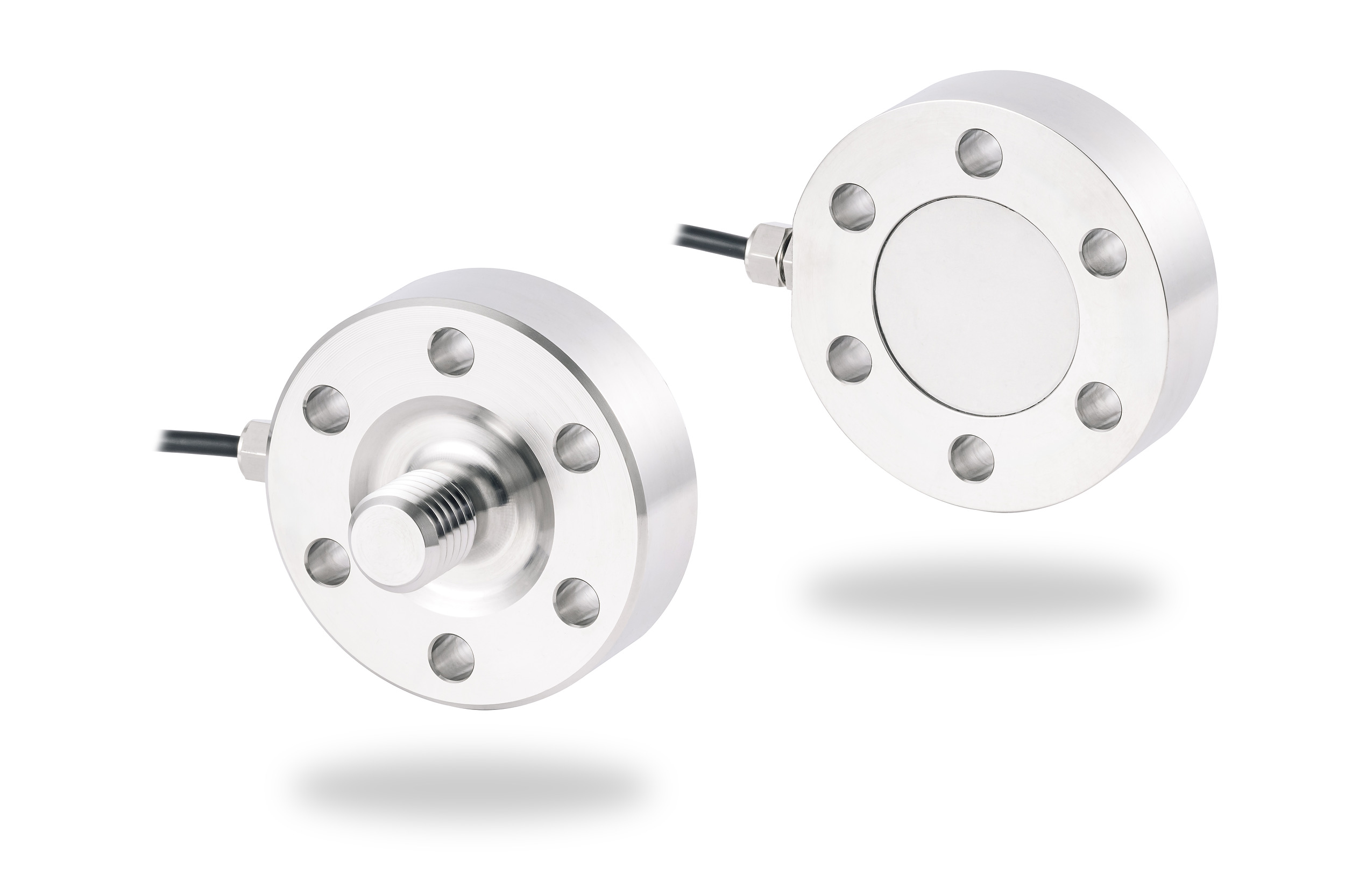

EMS40

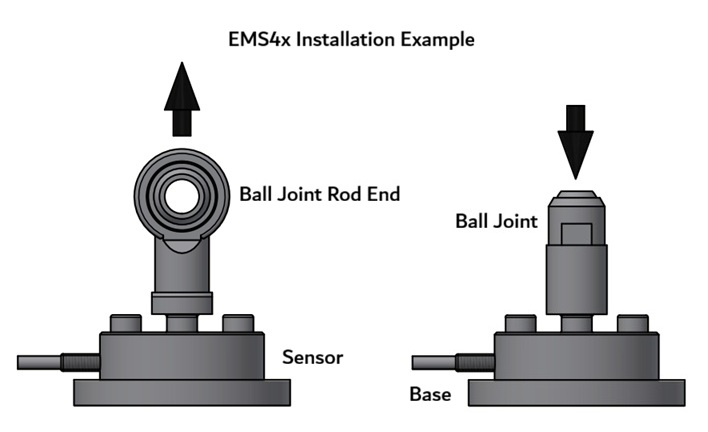

This universal membrane sensor is designed to measure tensile forces acting on the base. It can also measure compression forces.
Select the product's properties to calculate the price and check its availability.
Force Range
Calibration Certificate Issued by
Out of Stock. Let us know you're interested, and we'll prioritize its production.
This product is only available on request.
In Stock
| Price |
inc. VAT
|
| Force Range (Fn) | 1; 2; 5 kN | 10; 20; 50 kN |
|---|---|---|
| Overload | ||
| - Safe | 150 % Fn | |
| - Utlimate | 200 % Fn | |
| - Permanent Static Load | 75 % Fn | |
| - Dynamic Load | 50 % Fn | |
| Nominal Sensitivity (Cn) | 1.5 ± 2 % mV/V | |
| Zero Balance | 2 % F.S. | |
| Non-linearity | 0.25 % F.S. | 0.5 % F.S. |
| Hysteresis | 0.25 % F.S. | 0.5 % F.S. |
| Creep (30 min) | 0.1 % F.S. | |
| Temperature Effect | ||
| - Zero | 0.1 % F.S./10°C | |
| - Output | 0.1 % F.S./10°C | |
| Bridge Resistance | ||
| - Input | 380 ± 10 % Ω | |
| - Output | 350 ± 5 % Ω | |
| Insulation Impedance | > 500 MΩ | |
| Excitation | ||
| - Recommended | 7 V | |
| - Maximal | 15 V | |
| Temperature Range | ||
| - Nominal (Compensated) | 0 ... 50 °C | |
| - Operating | -10 ... 70 °C | |
| Protection | IP54 | |
| Cable | ||
| - Type | LifYDY 4 x 0.05 | LifYDY 4 x 0.14 |
| - Length | 2 m | |
